USB

UARBG-******

General Specification :

Rating:

Voltage: 30V AC(rms)
Current: 1.5A PWR/GND pins
Temperature: -40°C to 60°C storage; 0°C to 40°C operating

Electrical:

Termination resistance: 30mΩmaximum
Insulation resistance: 1000MΩminimum
Dielectric withstanding voltage: 750V AC at sea level
Capacitance: 2pF maximum

Mechanical:

Customer Drawings:

C-UARBG-00-00(D).pdf

desc_image:

A Type, Receptacle, Right Angle, Thru-Hole, Reverse Type

UARB3-******

General Specification :

Rating:

Voltage: 30V AC(rms)
Current: 1.5A PWR/GND pins
Temperature: -40°C to 60°C storage; 0°C to 40°C operating

Electrical:

Termination resistance: 30mΩmaximum
Insulation resistance: 1000MΩminimum
Dielectric withstanding voltage: 750V AC at sea level
Capacitance: 2pF maximum

Mechanical:

Customer Drawings:

C-UARB3-00-00(D).pdf

desc_image:

A Type, Receptacle, Right Angle, Thru-Hole, Reverse Type, Mid Mount

UARB1-******

General Specification :

Rating:

Voltage: 30V AC(rms)
Current: 1A maximum per contact not to exceed 30°C temperature rise
Temperature: -40°C to 60°C storage; 0°C to 40°C operating

Electrical:

Termination resistance: 30mΩmaximum
Insulation resistance: 1000MΩminimum
Dielectric withstanding voltage: 750V AC at sea level
Capacitance: 2pF maximum

Mechanical:

Customer Drawings:

C-UARB1-00-00(D).pdf

desc_image:

A Type, Receptacle, Right Angle, Thru-Hole, Reverse Type, Low Profile

UAR4E-******

General Specification :

Rating:

Voltage: 30V AC(rms)
Current: 1.5A PWR/GND pins
Temperature: -40°C to 60°C storage; 0°C to 40°C operating

Electrical:

Termination resistance: 30mΩmaximum
Insulation resistance: 1000MΩminimum
Dielectric withstanding voltage: 750V AC at sea level
Capacitance: 2pF maximum

Mechanical:

Customer Drawings:

C-UAR4E-00-00(D).pdf

desc_image:

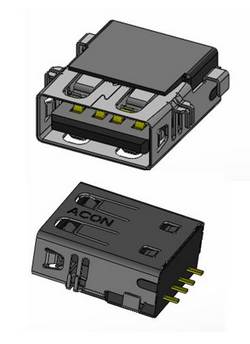

A Type, Receptacle, Right Angle, Mid Mount, Shell:PTH, Contacts:SMT, Reverse Type

UAR4D-******

General Specification :

Rating:

Voltage: 30V AC(rms)
Current: 1.5A PWR/GND pins
Temperature: -40°C to 60°C storage; 0°C to 40°C operating

Electrical:

Termination resistance: 30mΩmaximum
Insulation resistance: 1000MΩminimum
Dielectric withstanding voltage: 750V AC at sea level
Capacitance: 2pF maximum

Mechanical:

Customer Drawings:

C-UAR4D-00-00(C).pdf

desc_image:

A Type, Receptacle, Right Angle, Mid Mount, Shell:PTH, Contacts:SMT, Standard Type

UAR2M-4****9

General Specification :

Rating:

Voltage: 30V AC(rms)
Current: 1.5A PWR/GND pins
Temperature: -40°C to 60°C storage; 0°C to 40°C operating

Electrical:

Termination resistance: 30mΩmaximum
Insulation resistance: 1000MΩminimum
Dielectric withstanding voltage: 750V AC at sea level
Capacitance: 2pF maximum

Mechanical:

Customer Drawings:

C-UAR2M-03-00(C).pdf

desc_image:

A Type, Receptacle, Right Angle, Thru-Hole, Standard Type

UAR2M-4****6

General Specification :

Rating:

Voltage: 30V AC(rms)
Current: 1.5A PWR/GND pins
Temperature: -40°C to 60°C storage; 0°C to 40°C operating

Electrical:

Termination resistance: 30mΩmaximum
Insulation resistance: 1000MΩminimum
Dielectric withstanding voltage: 750V AC at sea level
Capacitance: 2pF maximum

Mechanical:

Customer Drawings:

C-UAR2M-02-00(C).pdf

desc_image:

A Type, Receptacle, Right Angle, Thru-Hole, Reverse Type

UARB1-******

General Specification :

Rating:

Voltage: 30V AC(rms)
Current: 1.5A PWR/GND pins
Temperature: -40°C to 60°C storage; 0°C to 40°C operating

Electrical:

Termination resistance: 30mΩmaximum
Insulation resistance: 1000MΩminimum
Dielectric withstanding voltage: 750V AC at sea level
Capacitance: 2pF maximum

Mechanical:

Customer Drawings:

C-UARB1-00-00(D).pdf

desc_image:

A Type, Receptacle, Right Angle, Thru-Hole, Reverse Type

UAR4*-4***00

General Specification :

Rating:

Voltage: 30V AC(rms)
Current: 1A maximum per contact not to exceed 30°C temperature rise
Temperature: -40°C to 60°C storage; 0°C to 40°C operating

Electrical:

Termination resistance: 30mΩmaximum
Insulation resistance: 1000MΩminimum
Dielectric withstanding voltage: 750V AC at sea level
Capacitance: 2pF maximum

Mechanical:

Customer Drawings:

C-UAR4E-00-00(D).pdf

UAR47-4***00

General Specification :

Rating:

Voltage: 30V AC(rms)
Current: 1A maximum per contact not to exceed 30°C temperature rise
Temperature: -40°C to 60°C storage; 0°C to 40°C operating

Electrical:

Termination resistance: 30mΩmaximum
Insulation resistance: 1000MΩminimum
Dielectric withstanding voltage: 750V AC at sea level
Capacitance: 2pF maximum

Mechanical:

Customer Drawings:

C-UAR47-00-00(K).pdf

desc_image:

A-Type, Receptacle, Right Angle, Single Deck, Low Profile
